Description

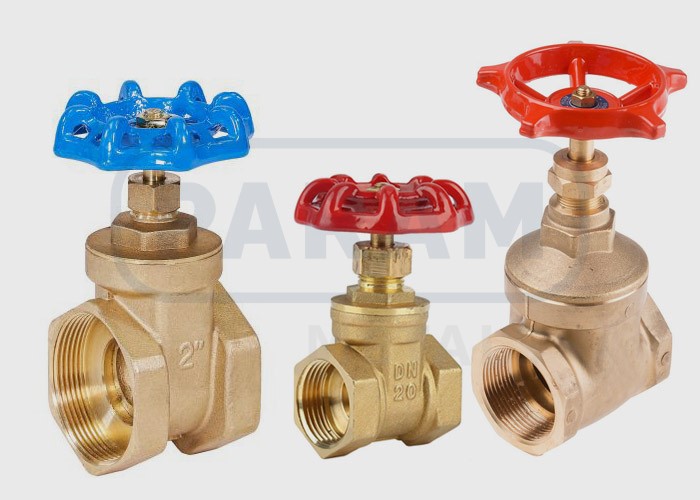

The Brass Gate Valve is a standard gate valve, which can be used for a variety of applications. These brass gate valves are designed for starting/shutting off flow, are supplied from stock as 1” F x F BSP, although there are a number of other sizes available on request. The gate valves are used within fuel and water installations, and are suitable for use with diesel, oil and water.

We has a wide selection of brass gate valves for your application. Gate valves are also called shut-off valves or sluice valves and are manually controlled valves for on/off flow control by rotating a hand wheel to lift or lower a wedge (also called disc) in the (non-obstruction) flow path. Due to their simple design, they are reliable and require little maintenance. The brass housing allows it to be used for water or other neutral liquid media. Due to gate valves requiring multiple turns of the hand wheel it closes/opens slow enough to prevent against a water hammer.

Application :	» Petrochemical » Power » Energy » Thermal » Refineries	» Fertilizers » Chemical » Pharmaceutical » Water » Steam industries
Material :	» Forged Brass Material » Any Special Brass Material Composition on Request.
Pressure Rating :	» 250 PSI
Temperature :	» -10℃ to 80℃
Standards :	» Designed and manufactured to conform API/BS/DIN Standard
Size :	» 1/4" to 4” » Any size available as per customer specification and drawing samples
Finish And Coating :	» Brass Color, Chrome Plated, Nickel Plated, etc.

“ Any kind of Brass Gate Valves can be developed and supplied exactly as per customer specification. ”– PARAM METALS
